(Huffameg, lets see if I can write a full blog post without AI, just for the love of the game)

Preamble⌗

These last few months I’ve been diving deeper into AI tools, and more specific agentic tools. Mainly for work, but also as preparation for my NDC lightning talk “The fundamentals of agentic coding” this summer. The talk submittal was mostly an excuse to learn all these tools better. I’ve tried VSCode, codex(cli), copilot(cli), gemini(cli) and opencode. I hope to increase this list by the summer, especially interested in more GUI tools that makes it easier to switch between concurrent agent sessions.

So when I created a really useful ad hoc tool for myself using these tools, I knew I wanted to share it.

Enough fluff, I can talk about my specific setup in a different post.

Context⌗

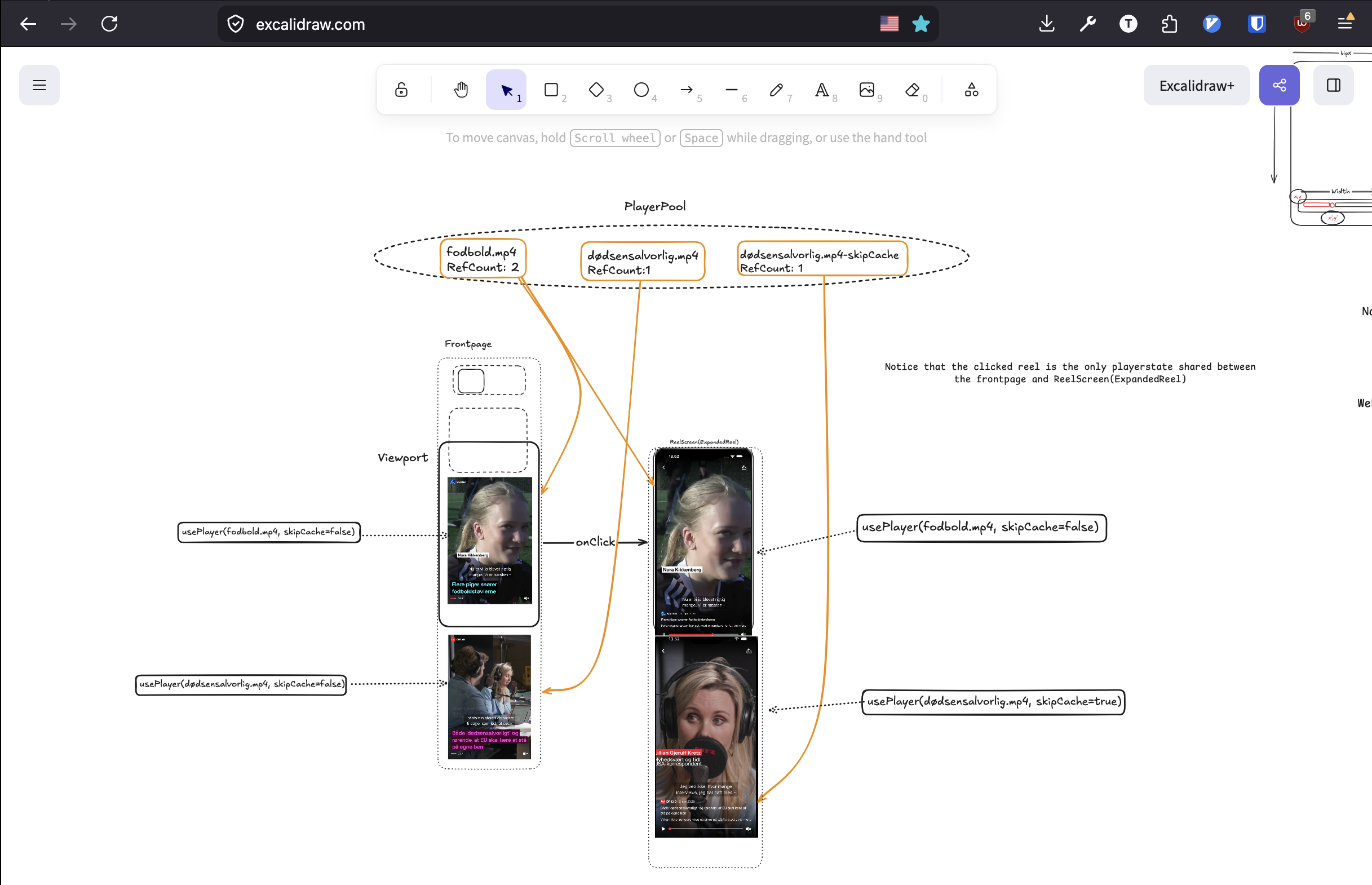

Recently, especially after becoming lead developer, I’ve had to resort to all types of diagrams to convey my thoughts. In the beginning I just used Excalidraw, but when making more structured diagrams, like sequence diagrams, I wanted something better so I resorted to sequencediagram.org. It has its own proprietary syntax for creating diagrams, but it was text based and as a programmer I preferred that. But it was still quite tedious to create them.

Hmm, isn’t there some new and fancy entity that’s incredibly good a producing lots of text?

I first thought of my colleague Cristian, but I came to the conclusion that modern LLMs is a better choice. I had a specific system I wanted to model that was already specced up in a markdown file (also done by AI), so I just included that file in my agents window (I use opencode), and let it generate a diagram with correct syntax.

And voila! I copy and paste the output into the website and it looks very good!

And so I iterated, asked my agent to make changes, copied and pasted and so forth. All this copy and pasting felt like “code smell”, or maybe like an “AI smell”?(I’m coining that now). There has to be a better way!

The way⌗

First of all, lets use a open text format, lets use Mermaid.js. Its supported many places (Most importantly Github), and supports many different types of diagrams. One of them being sequence diagrams. I had a look at their online editor, and was of course met by a popup: “Do you want the free version, or Mermaid Plus™ with AI for X$ every month”. (They have even changed domain from mermaid.js.org to mermaid.ai(!))

I’m not hating on them trying to create a business of this syntax and renderer, but I already have tons of credits from my jobs Github enterprise account, I want to use those credits! (Or my private subscriptions on personal projects).

So I tasked my opencode instance to create a locally running service for me instead. Let me see if I can find my original prompt.. (full transcript in the bottom of this post):

Prompt⌗

Build a minimal TypeScript Node.js app for live previewing Mermaid files.

Use:
- Node.js
- Express
- chokidar for file watching
- Server-Sent Events for live updates
- a static HTML/CSS/JS frontend
- Mermaid in the browser

Requirements:
- Watch `./diagrams/current.mmd`
- Serve a page on localhost that renders that Mermaid file
- Auto-update the diagram when the file changes
- Show render errors nicely
- Show the raw Mermaid source below the diagram
- Keep the code very small and readable
- Add a README and sample file
- Add scripts for `npm install` and `npm run dev`

Please create the full implementation.

….⌗

Okay, I did spar back and forth with ChatGPT for a little bit first, but not much. Then I let it create the prompt for me.

And it worked!

Just how I wanted it. Now I open opencode in the new project folder, refer to specific files or even let it read code and it creates diagrams while I have a live preview in my browser.

> opencode
oc> create a sequence diagram from this spec @../myproject/docs/spec.md

For me this was a great example of ad-hoc tools you can just make with very little effort and also lets you keep using your existing AI-subscription(Bring Your Own Agent - BYOA).

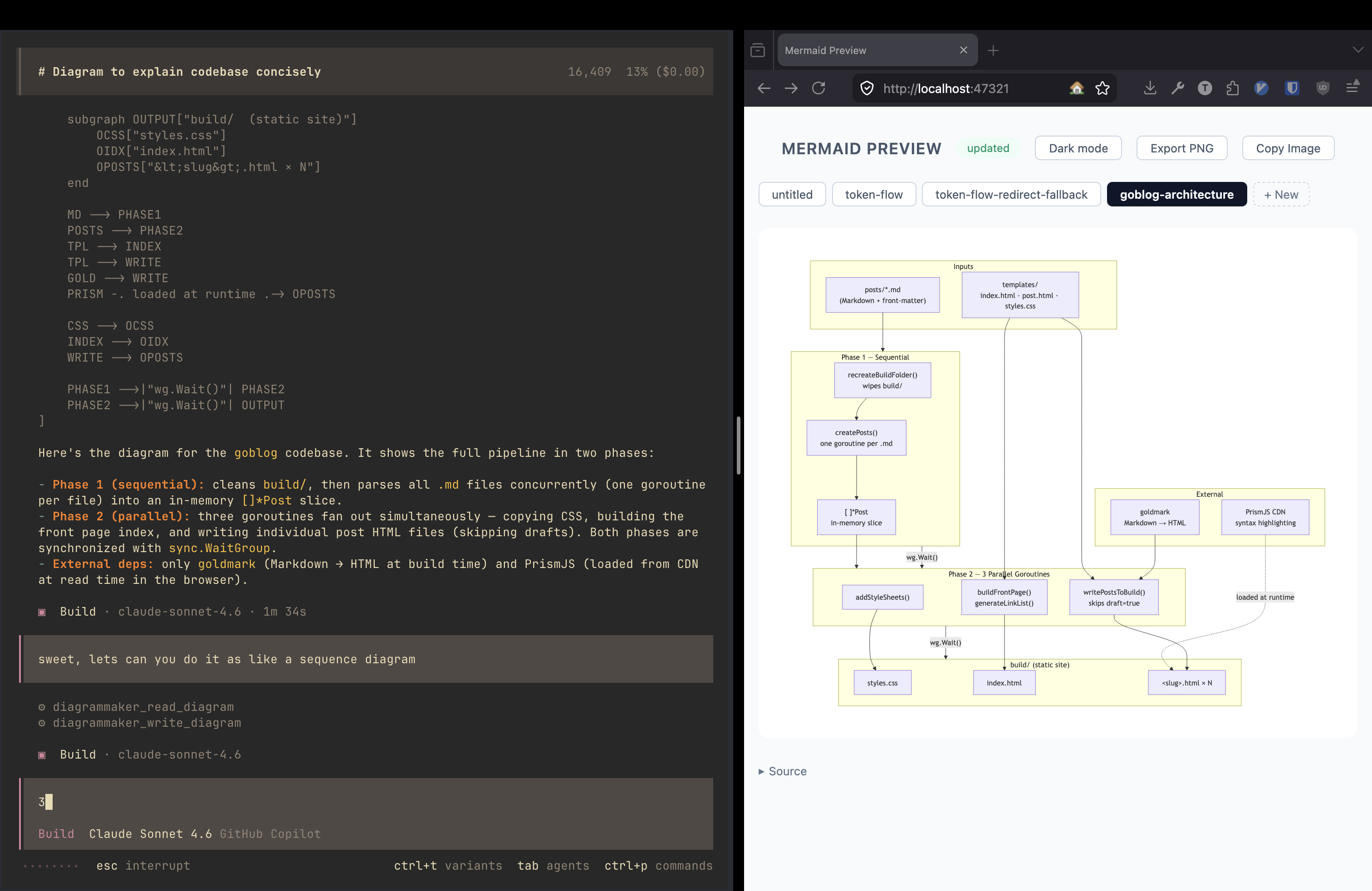

Below you can see it created a diagram from my terrible attempt at creating my own blog engine in golang (I might revisit that at one point with these modern AI tools. I would love some ad hoc specialized sections in my blogposts)

Iterating on the solution⌗

I’ve used it for a bit(2 days,wow) now, and I did a live demo for a team. While showing its abilities, I noticed I was missing an export to PNG button. So I just prompted that into existence during the session(!).

>opencode
oc> add a export to png tool

(Proper grammar is not something I prioritize when talking to LLMs hehe)

I later noticed that I wanted to use this tools from any directory, so I was thinking that this might be a great use case for MCP. So I told it to make it into an MCP server. Now I can open my agent tool from any project, the service is added as a tool in the context, and at any point I can just say “make a diagram from this implementation we are discussing”. And with Mermaid you are not limited to sequence diagrams, there are many different types.

While using it I kept iterating:

• Validation of syntax
• More than one diagram at a time
• Right click to save to png
• Save image to clipboard

Just a prompt away.

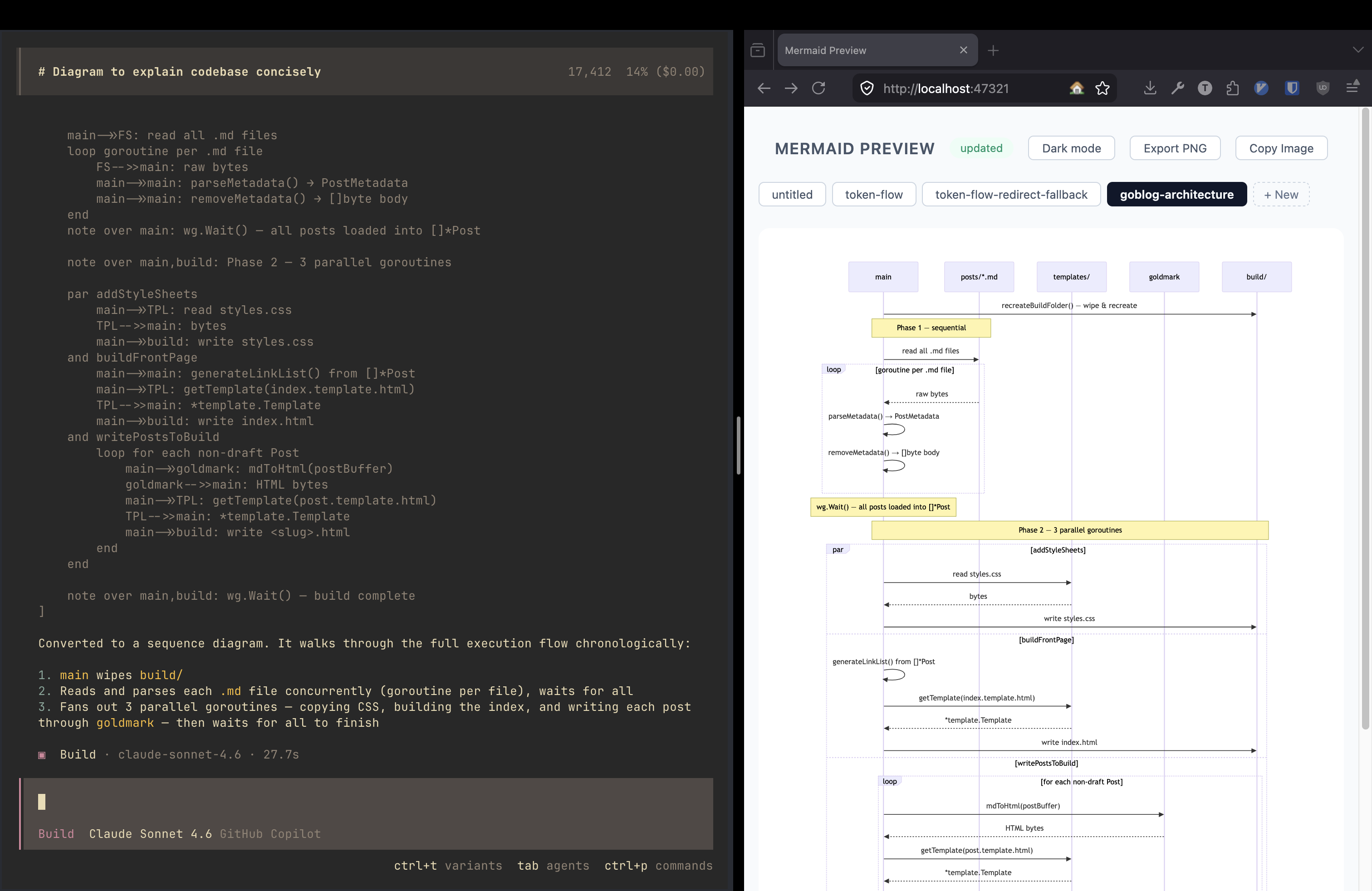

Below I prompted my agent to create the diagram as a sequence diagram instead.

Finally⌗

Again, I thought this was an interesting real-life example on how to use these tools to solve the problems you have day to day in your work. I’ll definitively have this in the back of my mind next time I’m met with tedious work. Honestly my head is aching from all the possibilities. And I know for a fact that in half a year this post will seem ancient compared to the solutions that arise.

Many want to know “How do effective programmers use AI these days?”, and I think its almost impossible to create a tutorial on it. It changes so fast, and everyone has their own setup that they are comfortable with. I don’t think many would like my setup. Maybe I’ll share mine some time. Please reach out if you want to talk agentic tools! I have, unfortunately, come to the conclusion that the only way forward is to embrace the tools and models, no matter how much I love the art of writing code.

(I thought of open sourcing the application and MCP server, but a part of me is like, just build it yourself? I’ve shared my prompt; Isn’t that the future that we’ve been prophesied?)

(I did manage to write this post without AI. At what point do you think people will stop caring about that? Hopefully never)

Full session from within opencode (with small redactions for IP reasons)⌗

Mermaid previewer⌗

Session ID: ses_3284fe682ffeZlGACbP4gOh8pj Created: 3/10/2026, 1:19:28 PM Updated: 3/10/2026, 2:42:43 PM

User⌗

Build a minimal TypeScript Node.js app for live previewing Mermaid files.

Use:

• Node.js
• Express
• chokidar for file watching
• Server-Sent Events for live updates
• a static HTML/CSS/JS frontend
• Mermaid in the browser

Requirements:

• Watch ./diagrams/current.mmd
• Serve a page on localhost that renders that Mermaid file
• Auto-update the diagram when the file changes
• Show render errors nicely
• Show the raw Mermaid source below the diagram
• Keep the code very small and readable
• Add a README and sample file
• Add scripts for npm install and npm run dev

Please create the full implementation.

Assistant⌗

Tool: todowrite

Assistant⌗

Tool: todowrite

Assistant⌗

Tool: write

Assistant⌗

Tool: todowrite

Assistant⌗

Tool: bash

Assistant⌗

Tool: write

Assistant⌗

Tool: todowrite

Assistant⌗

Tool: write

Assistant⌗

Tool: todowrite

Assistant⌗

Tool: write

Assistant⌗

Tool: write

Assistant⌗

Tool: todowrite

Assistant⌗

Tool: write

Assistant⌗

Now install dependencies and verify the server starts:

Tool: bash

Assistant⌗

Tool: bash

Assistant⌗

Server starts and responds. All done.

Tool: todowrite

Assistant⌗

Here’s what was built:

Files created:

How it works:

1. The browser connects to /events (SSE) on page load
2. The server immediately pushes the current file contents
3. chokidar watches diagrams/current.mmd for add/change/unlink events
4. Any change broadcasts the new source to all connected clients
5. The browser calls mermaid.render() — on failure, the error message is shown in a red box below the diagram
6. The raw Mermaid source is always visible in a collapsible <details> section

To run:

npm install
npm run dev
# → http://localhost:3000

User⌗

sweet, read @../dr/nyhedsapp/docs/ (or something like that and write a sekvens diagam on how the minting works)

Assistant⌗

Tool: bash

Assistant⌗

Tool: bash

Assistant⌗

Tool: bash

Assistant⌗

Tool: read

Assistant⌗

Tool: write

Assistant⌗

Done. The diagram is now live in diagrams/current.mmd — if the dev server is running you’ll see it at http://localhost:3000.

The sequence covers the full minting flow from the doc:

1. User opens → app fetches an OAuth access token
2. App generates a correlation ID (UUID) for tracing the session
3. App calls backend
4. App opens WebView
5. Vendor sets cookie and redirects to the destination URL
6. All three error paths are shown: backend 401/403 (re-auth), vendor 401/403 (refresh + retry), network failure (fallback UI)

User⌗

okay now just write a hello world diagram

Assistant⌗

Tool: write

Assistant⌗

Done.

(here is output from my demo)

User⌗

new node pointing to DR

Assistant⌗

Tool: edit

Assistant⌗

Wait — “new node pointing to DR” means a new node that points to a DR node. Let me re-read: you want a new node pointing to DR, so DR is the target.

Tool: edit

Assistant⌗

Added a new node DR with World pointing to it.

User⌗

sweet, read @../dr/nyhedsapp/docs/ (or something like that and write a sekvens diagam on how the minting works)

Assistant⌗

Already read that file earlier — writing the diagram now.

Tool: write

Assistant⌗

Done — same diagram as before, live in the preview.

User⌗

instead of outh provideer, write login.dr.dk

Assistant⌗

Tool: edit

Assistant⌗

Done.

User⌗

add a export to png tool

Assistant⌗

Tool: todowrite

Assistant⌗

Tool: read

Assistant⌗

Tool: edit

Assistant⌗

Tool: edit

Assistant⌗

Tool: edit

Assistant⌗

Now enable/disable the button based on whether a diagram is rendered:

Tool: edit

Assistant⌗

Also disable the button when the source is empty:

Tool: edit

Assistant⌗

Tool: todowrite

Assistant⌗

Done. An Export PNG button now appears in the header next to the status pill. How it works:

• Disabled until a diagram renders successfully (re-disabled on error or empty file)
• On click: clones the rendered SVG, draws it onto a canvas at 2× device pixel ratio for sharpness, fills the dark background (#1e293b), then triggers a download of diagram.png
• No server round-trip — entirely client-side
